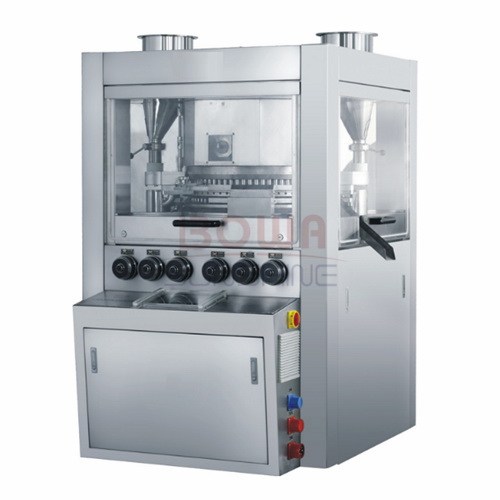

High Speed Rotary Tablet Press Machine HSZP620 Series

Product Item : MP3
Working stable
Qualified rate is NLT 99% with the precise dosage
Competitive Price
GMP Standard
Product description：High Speed Rotary Tablet Press Machine HSZP620 series,CE ISO Approval,Top Quality,Comptitive price,Reach to GMP standard,Wholesale,Hot Sales,China
Attachment Inquiry

Product Name: High Speed Rotary Tablet Press Machine

Machine Type: Hszp620 Series

Description:

This machine is a double-pressure high-speed rotary tablet press, which compresses granular raw materials into tablets. It is mainly used in the pharmaceutical, food, chemical, and electronic industries to press difficult-to-form materials

Feature:

1. The outer cover shell is in a fully enclosed form, made of stainless steel, and the surface of the turret is covered with a hardened layer, which can keep the surface from abrasion and meets GMP requirements.

2. High speed with large quantity punches, double press rollers, suitable for mass production.

3. Perfect tablet pressing system, twice pressure forming, short space, large pressing wheel, frame structure design, so that it will not deform when heavy load, long pressing time when pressing, small difference in tablet weight

4. The two impeller forced feeding and filling can fundamentally improve the fluidity and filling performance of the particles and ensure the feeding accuracy.

5. The track adopts double lifting, so that the force on the punch is more balanced when running, and it is not easy to wear.

6. The reliable electronic control system, advanced control principle, and reliable imported components ensure the accuracy of various procedures and interlocking protection functions. The control system can accurately monitor the entire production process.

7. Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.

8. Special oil proof, dust proof and noise proof design.

Advantage:

1.Working stable,Safe and reliable enough

2.Qualified rate is not less than 99% with the precise dosage

3.New closed structure Complied with GMP standard

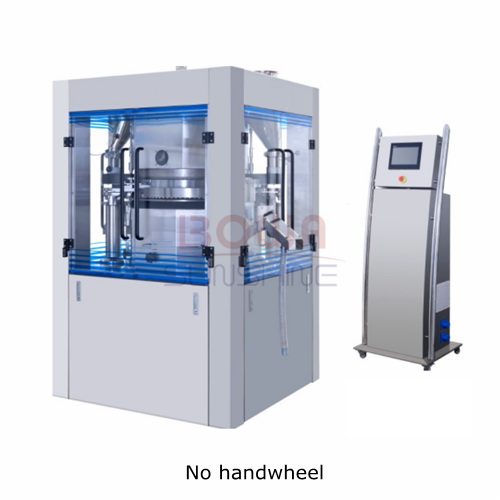

Remark for No Hand wheel Type:

1. The adopted operating system and tablet weight control system can realize various operations in production operation without hand wheel adjustment (main pressure, pre-compression and filling), and realize effective automatic detection and control of pressure and tablet weight deviation.

2. With memory storage function, all parameters of different production batches can be automatically stored and recalled

Technical Information:

Model		HSZP-45	HSZP55	HSZP-65	HSZP-71
Number of Stations		45	55	65	71
Tooling Standard		D	B	BB	BBD
Max Main Pressure (KN)		100
Max Pre-pressure (KN)		20
Max Tablet Diameter(mm)	Round tablet	25	18	13	11
	Irregular tablet	25	19	16	16
Max Filling Depth (mm)		20	18	15	15
Max Tablet Thickness (mm)		10	8	6	6
Max Turret Speed (r/min)		60
Max Production Capacity(pcs/h)		324000	396000	468000	496800
Motor Power (kw)		11
Overall Size (mm)		1530x1250x1900
Machine Weight (kg)		4200
